CONNECTION CHECK

Connection check

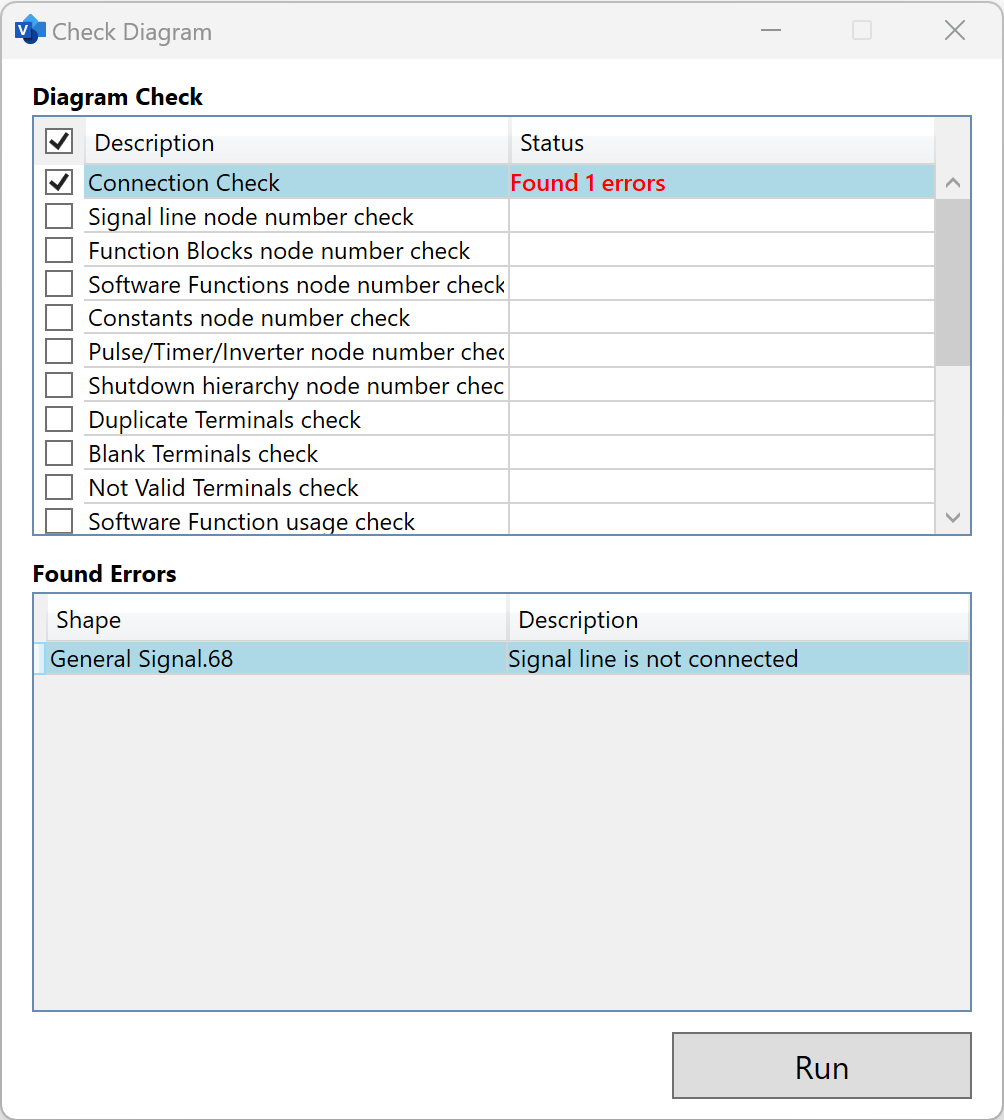

Checks every signal line (General, Data, etc.) on SCD diagram if it has loose ends (not connected to anything). Possible error descriptions:

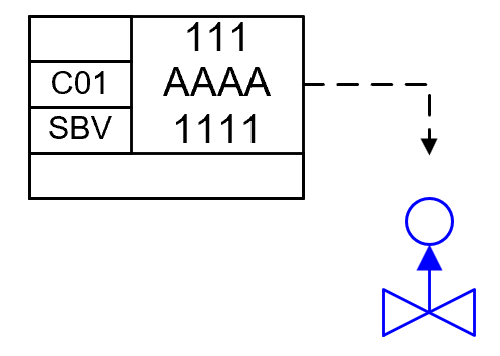

Signal line is not connected – Signal line is not connected to any shape, neither input nor output.
Fix: reconnect both input and output of signal line.
Signal Input/Output is not connected – Signal line input/output is not connected to any shape.
Fix: reconnect input/output of signal line.
