WARNING/ALARM TERMINALS CHECK
Function block warning/alarm check
Every Function Block template has predefined warning and action alarm terminals in its shape data.
The only correct way to represent these terminals on a diagram is to enable them through shape data window.

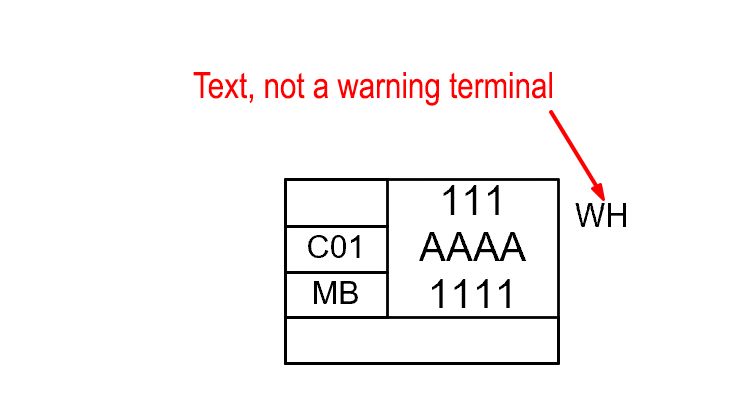

If these terminals were added by placing textbox with terminal name near function block Warning/Alarm terminals check will find them.
WARNING! Incorrectly used terminals can affect reports generated by SCD toolbox.

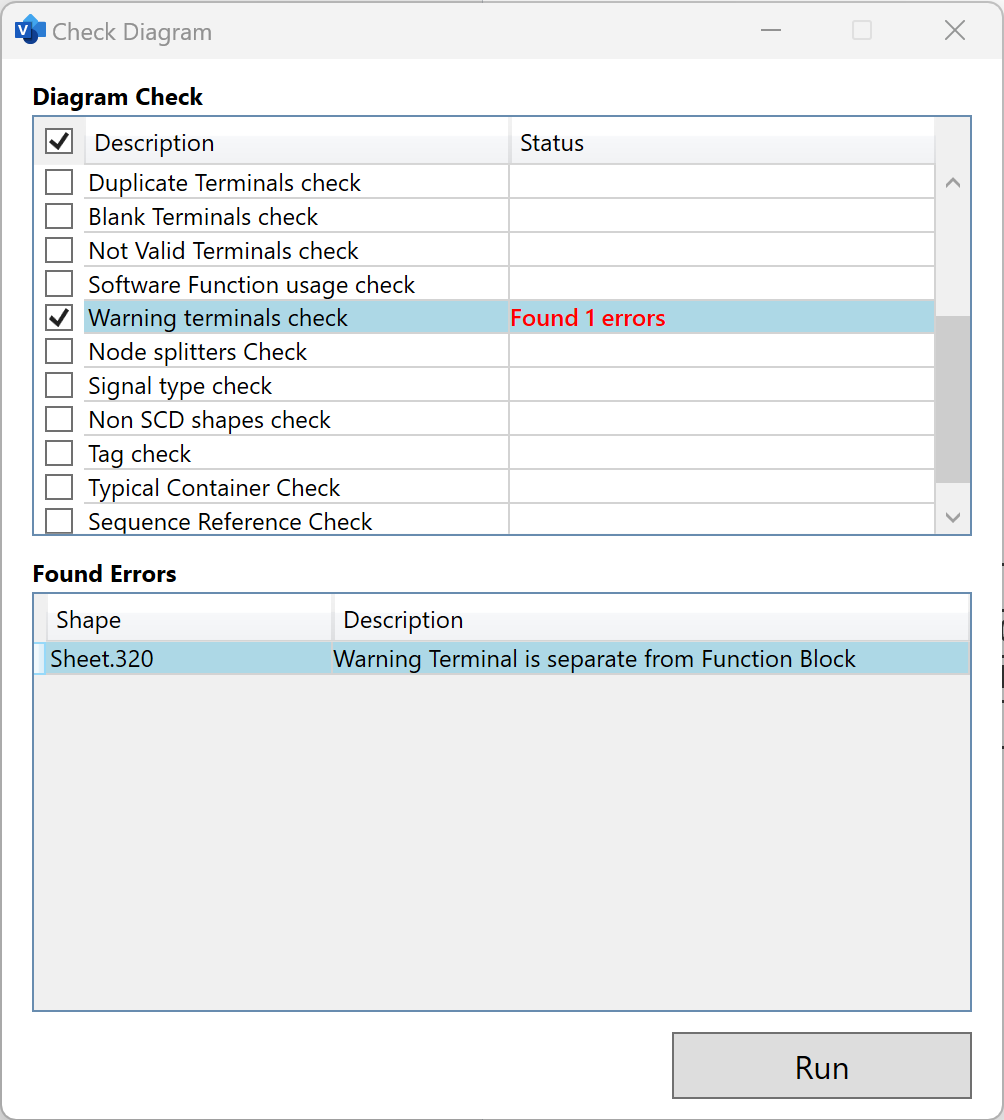

Possible error descriptions:
- Warning Terminal is separate from Function Block – Warning terminal is not terminal but another shape such as textbox.
Fix: Delete textbox and set Warning terminal via Shape Data Window. - Action alarm is separate from Function Block – Action Alarm terminal is not terminal but another shape such as textbox.
Fix: Delete textbox and set Action Alarm terminal via Shape Data Window.
