SEQUENCE REFERENCE CHECK

Sequence reference check

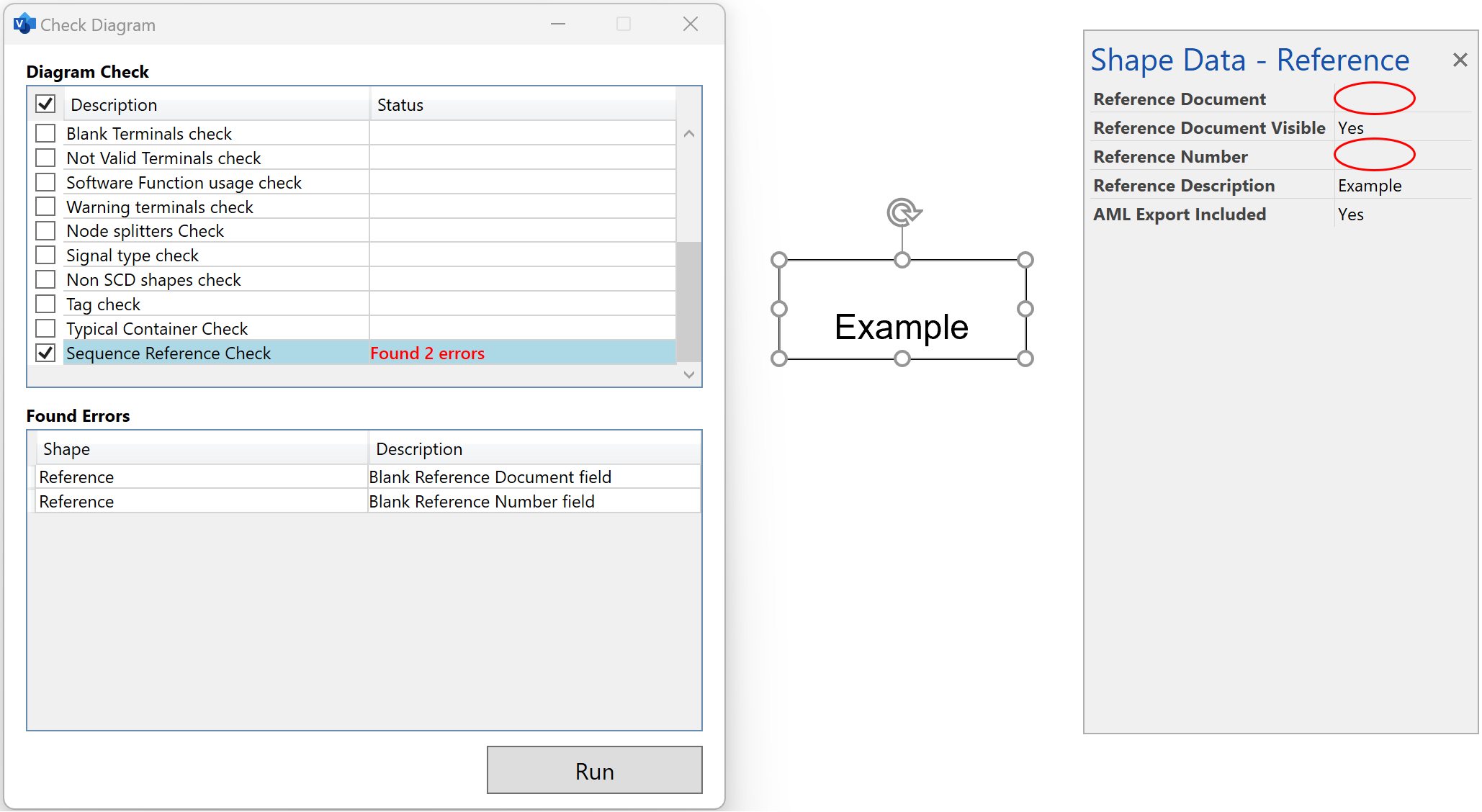

Checks Reference Document and Reference Number fields of Reference shape from SCD Sequence Symbols stencil. Possible error descriptions:

Blank Reference Document/Number Field – Reference Document or Reference Number field of the Shape Data is empty.
Fix: Fill in the corresponding field.
