DUPLICATE TERMINALS CHECK

Duplicate terminals check

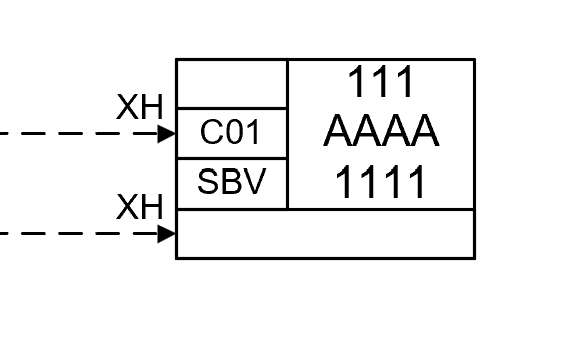

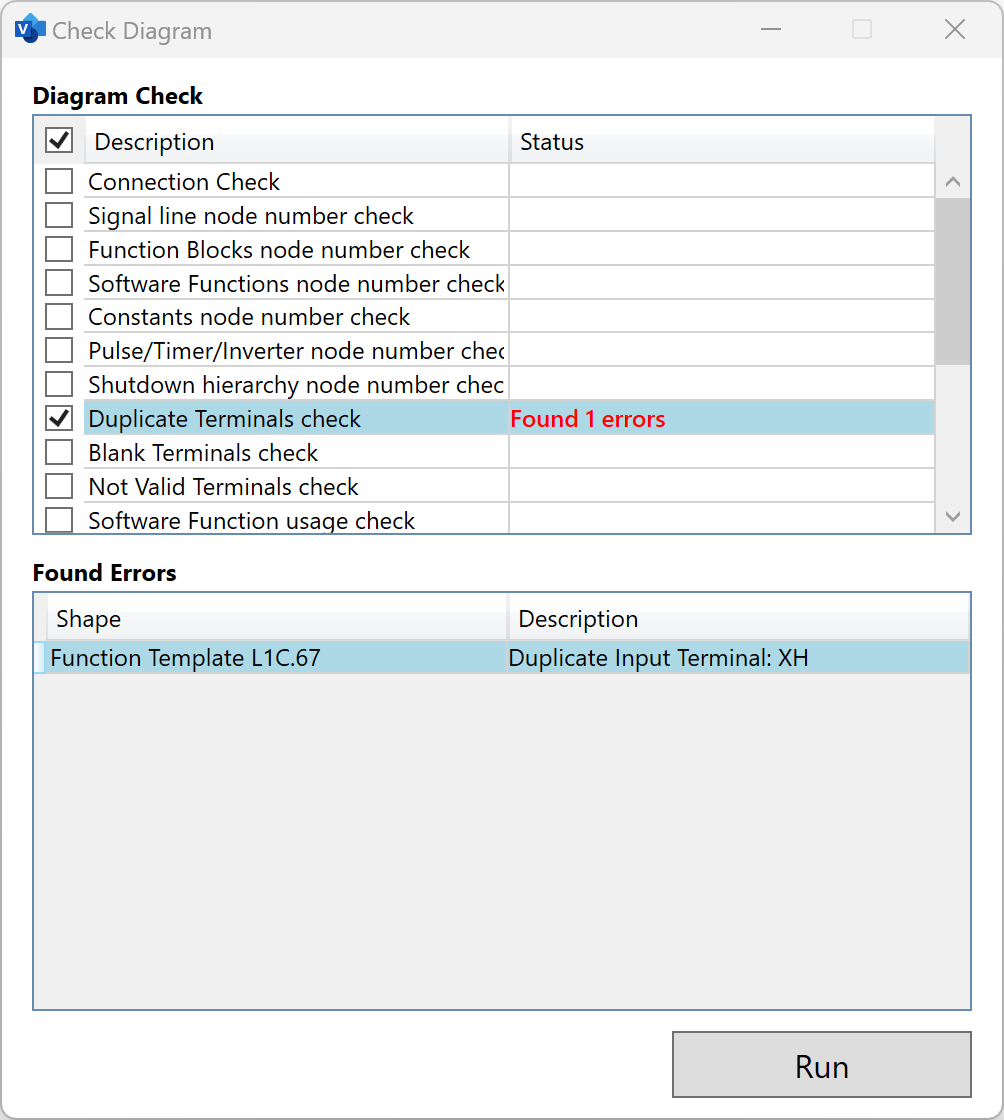

Checks Function blocks and Software functions if the same connected terminal used more than once. Possible error descriptions:

• Duplicate Input/Output Terminals – Input/Output terminals are used more than once.
  Fix: Check Input/Output terminals and replace duplicated.
